CHINA MADE LOW PRICE RUIDE SURVEY EQUIPMENT RTS862R4A REFLECTORLESS TOTAL STATION

FOB Reference Price:Get Latest Price
US $2,399-2,999 / Set | 1 Set/Sets ECONOMIC RUIDE RTS862RA TOTAL STATION PRICE (Min. Order)
Supply Ability:
10 Set/Sets per Month
Port:
SHENZHEN OR HONGKONG
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RUIDE
Model Number:
RTS862RA
Accuracy:
2 sec
Language:
English/Protugues/espanol/turkish/Chinese/Catanese
Dual Axis::
yes
Display::
Large Color Touch Screen
OS system::
window ce system
Data transfer::
USB driver/usb cable/blueteeth/sd card
Reflectorless Range::
300M or 500M
Delivery and Warranty::
Ready stock,one year
package size:
52cm x 40cm x 32cm
weight:
14.0kg (30.86lb.)
Packaging & Delivery
Packaging Details
Size:53*33*43cm
Net Weight: 10.5 KG
Delivery Time
Shipped in 3 days after payment

CHINA MADE LOW PRICE RUIDE SURVEY EQUIPMENT RTS862RA REFLECTORLESS TOTAL STATION



Product Description



Total station Features:



RUIDE TOTAL STATION RTS-862RA is an intelligent total station, using the Chinese windows operating system, in addition equipped with a wealth of measurement procedures, but also sets the total station functionality and software and a tunnel. The instrument is equipped with a high-definition color touch screen, laser pointing, Temperature Pressure automatic correction system, fast Bluetooth system, the unique design features of the road, is a good helper engineering users.


1. Absolute encoder goniometer
The absolute angle measurement advanced coding technology, which greatly improves the stability of the goniometer. Ruide total station, using advanced coding absolute angle measurement technology, the total station boot without initialization, in the measurement process, if there is power down type shutdown, restart the instrument retains the original information, greatly facilitate the measurement of worker .



2. Optical biaxial liquid electronic compensation
Ruide RTS-862RA Total Station adopts international advanced dual-axis compensation technology, the instrument can automatically eliminate errors and automatic compensation, greatly improving the accuracy of the instrument and automation. Graphical electronic bubble, X, Y biaxial compensation error display allows the operator to know the answer, at a glance.



3. Temperature Pressure Sensor
Built-in high-precision temperature and pressure sensors, as long as the menu is set in the temperature, barometric pressure correction is set to automatic, you can easily complete corrected temperature, barometric pressure.



4. Bluetooth communication
Ruide RTS-862RA total station uses the latest Bluetooth technology, PDA, hand book and other wireless communications.



5. intuitive, user-friendly Windows interface
Convert many complex professional operation into an intuitive graphical operation, even for beginners, but also easy to use.



6. The design is more convenient and beautiful
U disk data transfer
USB communication (communication with computers and other peripherals)
SD card to transfer data
Lithium battery, recharge it after use, without full use



Total station langage supporting for : English/ Protugues/ espanol/ turkish / Chinese / Catanese, most of china made total station actually only support for english, the RTS-862R total station have so many language options, is due to it specially designed for oversea market, to meet with different language surveyor's requirement.



Specification of Total Station RTS-862RA



TECHNICAL PARAMETER
  RTS-862ARTS-862RARTS-862R5ARTS-862I
ImageNIL
pixesNIL3 MP
Focal LengthNIL16 MM
Field of viewNIL15.5 X 11.7 degree
DISTANCE MEASURING (max. distance under good condition)
Single Prism5 KM
Non-prismNIL300 M500 M500 M
Number display              max: 99999999.999,   min: 0.1mm
Accuracy                         single prism: 2mm+2ppm;  non-prism: 2mm+2ppm
Measuring time             Fine:2s, tracking:0.25s
meteorologic correctioninput the parameter adjusted automaticall
prism constantinput the parameter adjusted automaticall
ANGLE MEASUREMENT
measuring methodabsolute encoding
disk diameter79mm
Min. reading0.1” / 1” optional
accuracy2”
detection methodhorizontal: dualvertical: dual
TELESCOPE
imageerect
length152mm
effective aperturetelescope:45mm, distance meter: 47mm
magnification30X
field of view1°30’
Distinguishability  3”
min.focuing distance1m
AUTO VERTICAL COMPENSATOR
Systemdual axis liquid sensortronic Compensation
range±4'
accuracy1”
LEVEL SENSITIVITY
plate vial30”/2mm
Round vial8’/2mm
OPTICAL PLUMMET (OPTIONAL - LASER PLUMMET)
imageerect
magnification3X
Focusing range0.3m ~ ∞
field of view
DISPLAY
type3.5-inch color screen windows CE operating system
OTHERS
power supplyrechargeable Ni-H battery
Continuous working hours8 hours
SIZE & WEIGHT
size200mm*180mm*350mm
weight6.0kg





Our Services

RUIDE RTS862RA total station is with a low price,it is a latest updated version based on the old hot selling total station model RTS862R3, it is with the large touch screen, and updated the hardware, to bring this total station into a high performance standard. Most welcome to get a cheap price offer for this total station from us.



If this price is out of your budget, there also have a similar mode PJK PTS1202R reflectorless model for 500meter, single prism for 5km, and triple prism for 8km , which is very competitive, you can feel free to send inquiry for this model too.

Total station Delivery time: in ready stock ,



Most competitive total station with discount price all in PJM Technology 2015, most welcome to send us inquiry. Or talk online for skype: jessie41597, or whatsapp +86 18503046338;

Packaging & Shipping

total station Payment terms: T/T in advance, WU, ECROW

Total station packing info: dim:53*35*43,net weight:10kg,

TOTAL STATION PACKAGE PICTURE;

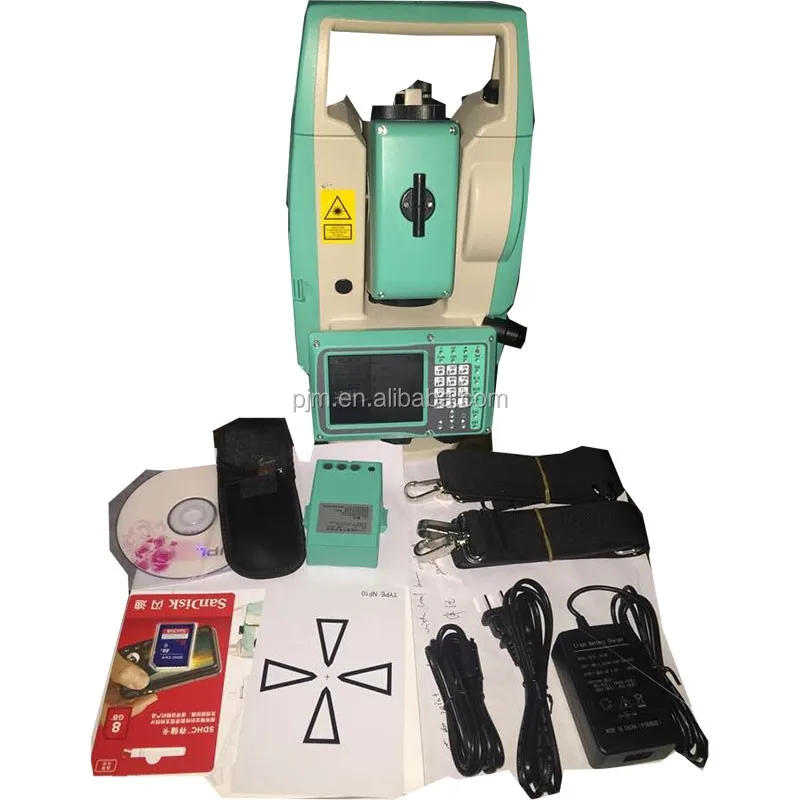

TOTAL STATION ACCESSORIES :




Company Information



WHO WE ARE ?

Shenzhen Pengjin Technology Co.,Ltd, which is the owner of PJK brand land surveying instrument, the PJK brand covers total station, theodolite, level,RTK GPS, GIS, handheld GPS, Rebound tester, laser vertical collimator, laser rangefinder, laser swinger, laser line marking, laser telescope rangefinder,etc. Now we are looking for the international general agencies.


Recently we have many products which are on hot sale like RIDGID line detectors as well as the instruments of HiTarget, North, Kelida, SD, Ruide, GNSS, FOIF and so on. What's more, we have Trimble, Ashtech, LAIKA, TOPCON, SOKKIA, NIKON and surveying instrument which are on sale.
In addition, we also undertake projects like land survey and underground pipeline leak test as well as underground pipeline survey, etc.
