Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PJK
  • Model Number: DSC332
  • Length of tube:: 215mm
  • Image:: Erect
  • Objective aperture:: 32mm / 36mm / 42mm
  • Magnification:: 24X / 28X / 32X
  • Resolution(JIS standard):: 3'' / 3.5'' / 4''
  • Minimum focus:: 0.2M / 0.3M
  • Circular level sensitivity:: 10' / 2mm
  • Horizontal circle diameter:: 103 mm
  • Compensator Accuracy:: 0.3'' / 0.5''
  • Focusing Knob:: 2 speed / 1 speed

Packaging & Delivery

Packaging Details size; 25*22*18cm
weight: 2KG with case
Delivery Time 1-3 days

2017 ECONOMIC MEASURING PJK DSC series AUTO LEVEL INSTRUMENT PRICE



Key advantages:

  1. Key Advantage for AUTO LEVEL EQUIPMENT 32X DSC332 and with a new factory price
  2. They are precision levels with the advantage of stylish portable design,aesthetic appearance and the most suitable for field work environment.
  3. They are equipped with precision built-in micrometer and high-precision compensator. The accuracy of compensator is ±0.3"
  4. Compensator adopt cross wire mechanics and air damper,with a machine used for compensating temperature at the same time
  5. Jiggle device adopt friction motion and limitless micro-motion mechanics
Product Description

WORLD-Proven Precision and durability

PJK DSC series automatic levels feature enhanced reliability under all environment conditions. Tough and compact bodies are mor tightly sealed against water, humidity, and dust(IPx6).
The DSC series levels provide quick setup, easy sighting, and superior durability against viberation an shock, ensuring the increased productivity over an extra-long period of time.


Precise, Reliable Automatic Compensator

The DSC series levels incorporate the most precise and reliable compensator available in the market today. The technological superiority of the PJK automatic levels has been proven since the release of the best-selling DSC2 model in 1963. Four super-high-tensile suspension wires and magnetic damping system ensure accuracy and stability even when exposed to temperature changes, vibrations, or shock.



Super Telescope

Optimally designed telescope provides exceptionally bright and sharp view that reduces operator's eye strain. ultra-short focus distance of 20cm, from end of telescope makes it easiest to use in confined locations. Two-speed focus knob switches between coarse and fine for even faster operation(DSC20).



Quick Collimation

Two knobs of endless horizontal motion drives can be operated with either hand for fast and easy aiming;

Horizontal Angle measurement

Horizontal angles can be read in 1 degree or 1gon units. Freely relatable circle allows any angle reading from zero. Right angles can be quickly set for layout and alignments tasks. The readout window is conveniently located on the instrument base- directly below the eyepiece.



Rapid, Easy setup

A domed-head tripod makes setting up faster and easier even on inclined, uneven grounds. The DSC series levels also fit -flat-head tripods. The circular level can been seen on pent prism or plane mirror located beside the telescope eyepiece.

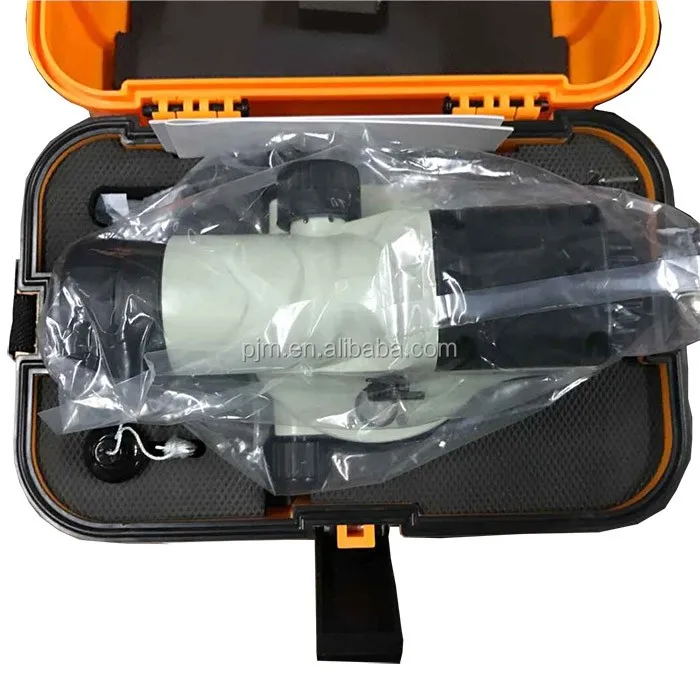

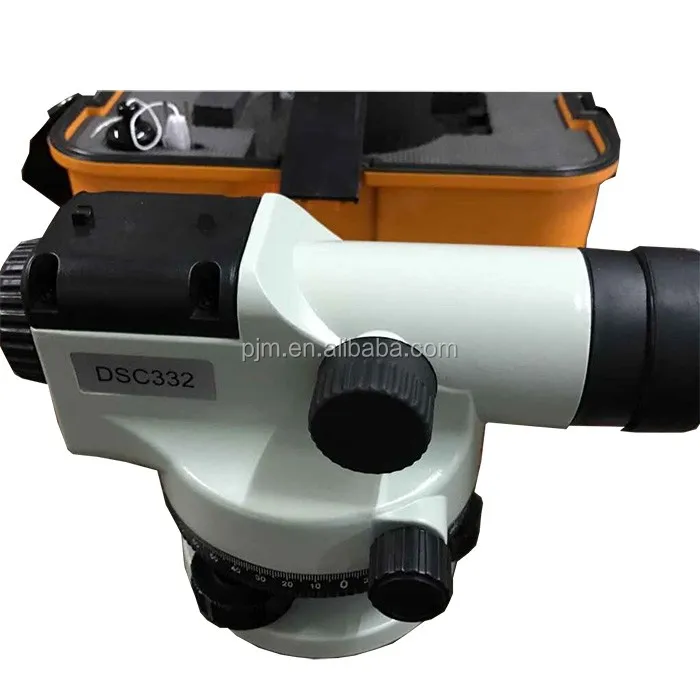

The detail picture for PJK AUTOMATIC LEVEL instrument:

Stadla
The stadla lines on the recicle allow distance measurements. Simply multiply the staff length between the top and bottom stadla line by 100


Easy to Adjust
Recicle adjustment is made with one screw. Circular level vial is adjusted wth two screws. DSCoth adjustments are simple and fast with provided tools;





The detail specification of PJK AUTO LEVEL DSC30 / DSC20 / DSC40 auto level survey instrument



PJK AUTO LEVEL SURVEY INSTRUMENT DETAIL SPECIFICATION:


PJK DSC20 DSC30 DSC40 OPTICAL AUTO LEVEL

ModelDSC20DSC30DSC40
Telescope
Length215MM(8.46in.)
Maginification32X28X24X
Objective Aperture42mm(1.65in)36mm(1.42in)32mm(1.26in)
Resolving power3''3.5''4''
Filed of view

(at 100m/328ft.)
1°20'
(2.3m/7.5ft.)
1°25'
(2.5m/8.2ft.)
Minimum Focus0.2m(7.9in) from end of telescope
0.3m(1ft.) from instrument center
ImageErect
Reticle PatternWedgeCross line
Stadia Constant0
Stadia Ratio100
Focusing Knob2-speed1-speed
Sighting aidpeep sightGun sight
Lens HoodRetractable-
Accraucy (standard deviation for 1km double run leveling)
Without micrometer0.7mm
(0.03in.)
1.5mm
(0.06in.)
2.0mm
(0.08in.)
With Mircometer0.5mm
(0.02in.)
-
Compensator
TypePendulum compensator with magnetic damping system
Setting Accuracy0.3''0.5''
Working Range±15'
Circular level
Sensitivity10'/2mm
MirrorPentaprismPlane Mirror
Horizontal circle
Diameter103mm(4.1in)
Graduations1°/1gon
General
Horizontal motion driveClampless,endless, double-sided knobs
Water resistanceIPX6(IEC 60529:2001)



HOT SELLING SOKKIA B30 28X AUTO LEVEL INSTRUMENTS;



Packaging & Shipping

PJK AUTO LEVEL Price and Terms:

Payment Terms: T/T in advance, WU, ESCROW

Delivery time: 3-5 days

Warranty : ONE year
