Quick Details

  • Place of Origin: United Kingdom
  • Brand Name: Magellan
  • Model Number: Radiodetection RD1100 GPR
  • Sensor Frequency: 250MHZ Ultra Wide Band
  • Signal Enhancement: DynaQ (optimizes data quality with cart speed).spatial filting.
  • Data Analysis: In field analysis
  • Touch Screen Display: Size:21cm (8'') diagonal
  • Power: Consumption: 1025V Battery: 12V,9AH Lead Acid
  • Spatial interval: 5 cm (2'')
  • Depths range: Up to 8m (27') maximum
  • Dispaly depths scale: 1m-8m (3'-30')
  • Languages supported: Non-lingual icons,English, Spaish, French, German
  • Compliance: CE,FCC,ETSI,Industry Canada

Packaging & Delivery

Packaging Details Dimensions: 65.3 mm x 128 mm x 36.8 mm
Weight: 195 g
Delivery Time 3-5days
Product Description

Product Application

Radiodetection RD1100 gpr ground penetrating radar for complete range utility-locating
Complete range of utility-locating radars


Key features

1.Easy to operate with touch screen.
2.Detect 5-8 meter depth under ground
3.Detect all types of pipeline ,including metal,plastic and ceramic.
4.Display the position of your suveys on Google Earth
5.Generate and delivery mini reports from your survey site by connecting to a Wi-Fi

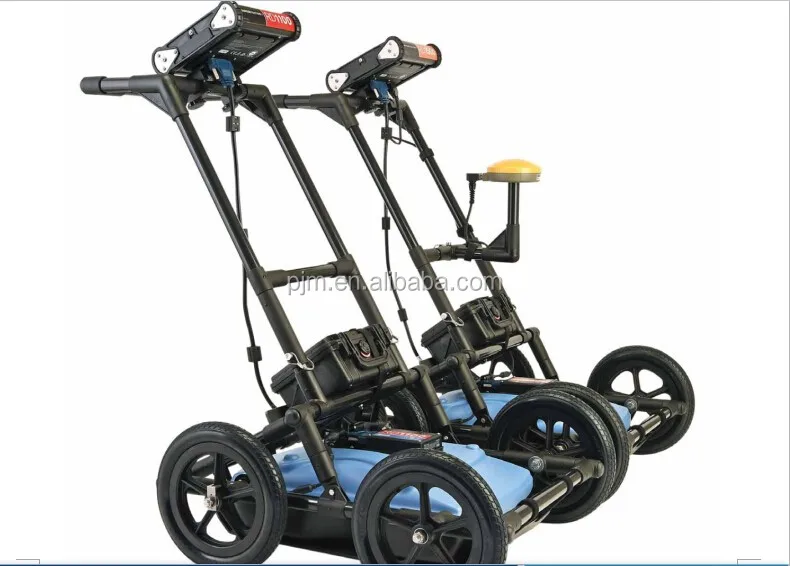

Radiodetection's RD1100&RD1500 ground penetrating radar is an innovative tools for finding buried utilities.
RD1100 provides locate professionals, surveyors and other users with the tool they need to trace and mark the position of all types of cable and pipe, including plastic and ceramic. Built in as standard is the ability to take Screenshots which are saved to internal memory for immediate emailing via Wi-Fi or later export to USB memory stick. GPS positioning is captured for integration into Google Earth.
RD1500 takes utility locating to the next level, offering users easily interpreted Depth Slices as well as traditional Line Views.Use proprietary FrequenSee™ technology to highlight small/shallow, medium or large/deep buried utilities. Enhance the RD1500 with software to export GPR data and perform detailed analysis, and with external GPS for higher positional accuracy.

SPECIFICATIONS
RD1100 & RD1500
Options & comments
Sensor Frequency
250MHZ Ultra Wide Band
RD1500:
Includes FrequensSee
Signal Enhancement
DynaQ (optimizes data quality with cart speed).spatial filting.
Data Analysis
In field analysis
RD1500: Post-processing analysis with EKKO_Project and Utility Suite (Option)
Touch Screen Display
Size:21cm (8'') diagonal
Enhanced: Upgrated Dispaly Unit package
Power
Consumption: 1025V
Battery life typically 4-6hrs
Battery: 12V,9AH Lead Acid
Spatial interval
5 cm (2'')
Depths range
Up to 8m (27') maximum
Ground conditions dependent
Dispaly depths scale
1m-8m (3'-30')
Languages supported
Non-lingual icons,English, Spaish,
French, German
Dimensions(H×W×D)
100 × 70 × 115cm (39.4×27.6×45.3'')
Weight
22kg (48lb)
Operating temperature range
Dispaly:-10° to +50℃ (14°F to +122°F)
Sensor:-40℃ to +50℃ (-40°F to 122°F)
Environmental protection
IP65
Compliance
CE,FCC,ETSI,Industry Canada
Standard warranty
1 year

Main Features

1) Geo-referenced data,display the position of your surveys in Google Earth™ and other geo-referencing programs.
2) Screen captures,add markers via the touch screen display to highlight features of interest
3) Depth Slices (RD1500),view horizontal slices at different depths to display cables, pipes and other utilities in unprecedented clarity.
4) On-site Map View (RD1500),view your identified features in plan map view using the optional external GPS.
5) Instant email,generate and deliver mini reports from your survey site by connecting to a Wi-Fi network or by using your phone as a hotspot.

Detailed Images


Geo-referenced data

 Name: RD1100&RD1500 ground penetrating radar Brand: SPX
Original: UK
Display the position of your surveys in Google Earth™ and other geo-referencing programs.

Screen captures


Name: RD1100&RD1500 ground penetrating radar Brand: SPX

Original: UK

 Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Depth Slices (RD1500)


 Name: RD1100&RD1500 ground penetrating radar Brand: SPX

Original: UK

View horizontal slices at different depths to display cables, pipes and other utilities in unprecedented clarity.


On-site Map View (RD1500)


Name: RD1100&RD1500 ground penetrating radar Brand: SPX

Original: UK

 View your identified features in plan map view using the optional external GPS.


Our Service

Pre-Sales Service

Pre-Sales Service
* Inquiry and consulting support. .
* Visiting our company website.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

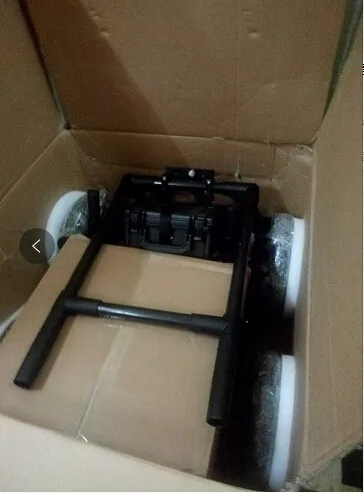

Packing & Delivery
Packaging
Size
100 (L) * 70 (W) * 115 (D)
Weight
22kg



Packaging Details
The normal package is catboard box(Size: L*W*H). Of course,we will use pe film for packing according to customers special request.
